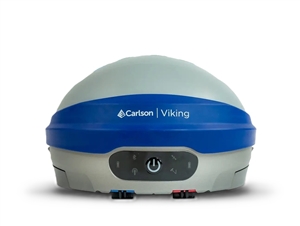

The Carlson Viking GNSS Base & Rover Receiver is a flagship, American-made GNSS positioning solution engineered for surveyors, construction professionals, GIS mapping, marine surveying, and advanced RTK applications. Utilizing Carlson’s innovative Triple-Fix technology with dual GNSS RTK modules and three independent RTK engines, the Viking delivers highly reliable centimeter-level positioning while virtually eliminating false fixes in challenging environments.
Designed for maximum versatility, the Viking can operate as either a base or rover and supports all major satellite constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC. Integrated calibration-free tilt compensation maintains precise measurements at inclinations up to 60°, while rugged IP67 and MIL-STD-810G construction ensures dependable performance in harsh field conditions. Combined with Carlson SurvPC software, advanced anti-jamming protection, and flexible communication options including UHF radio, cellular modem, Bluetooth, and Wi-Fi, the Viking provides a complete high-performance GNSS workflow for demanding surveying applications.
- GNSS Modules: Dual GNSS RTK Modules
- RTK Engines: 3 Independent RTK Engines
- Channels: 632
- Constellation Support: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC
- Horizontal Accuracy: 0.6 cm + 0.5 ppm
- Vertical Accuracy: 1 cm + 1 ppm
- Tilt Compensation Accuracy: 0.7 cm @ 20°, 0.9 cm @ 30°, 1.2 cm @ 45°, 1.5 cm @ 60°
- Processor: 1.7 GHz Dual Cortex-A55 + 250 MHz Cortex-M33
- Memory: 2 GB DDR4 RAM
- Storage: 16 GB eMMC
- Battery: Dual removable 25 Wh lithium batteries
- Battery Runtime: 10+ hrs.
- Charging Options: USB-C or Dual-Bay Charger
- Wireless Connectivity: Bluetooth®, Wi-Fi, 4G LTE Cellular, UHF Radio
- Radio Frequencies: 400 MHz & 900 MHz
- Ports: USB, 2 x RS232, SD Card Slot
- Ingress Protection Rating: IP67
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)
- Weight: 2.98 lbs. (1.35 kg) with batteries
- Dimensions: 6.3 in. diameter × 3.75 in. height
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Triple-Fix Technology: Dual GNSS RTK modules and three independent RTK engines deliver highly reliable centimeter-level positioning while minimizing false fixes.
- American Made: Proudly assembled in Kentucky using components from the USA and Europe with Carlson-engineered design.
- Calibration-Free Tilt Compensation: Maintains precise measurements at inclinations up to 60° without manual calibration.
- Supports All Major Constellations: Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC satellites simultaneously.
- Base & Rover Flexibility: Configurable for both base station and rover applications.
- Advanced Anti-Jamming & Anti-Spoofing: Protects against GNSS interference and intentional spoofing attempts.
- Multipath Mitigation: Maintains accuracy near buildings, machinery, and construction sites.
- Integrated Connectivity: Includes Wi-Fi, Bluetooth, cellular modem, and configurable UHF radio communication.
- Rugged Field Design: IP67-rated and MIL-STD-810G tested for demanding jobsite environments.
- Dual Hot-Swappable Batteries: Provides 10+ hours of runtime with flexible charging options.
- Seamless Carlson Integration: Optimized for Carlson SurvPC and Layout field software.
- Web-Based User Interface: Allows convenient remote setup, monitoring, and management.
|
|
|
|
|
|
|
