Topcon RL-H5B DB Horizontal Laser Level with LS-80X Receiver (Alkaline)

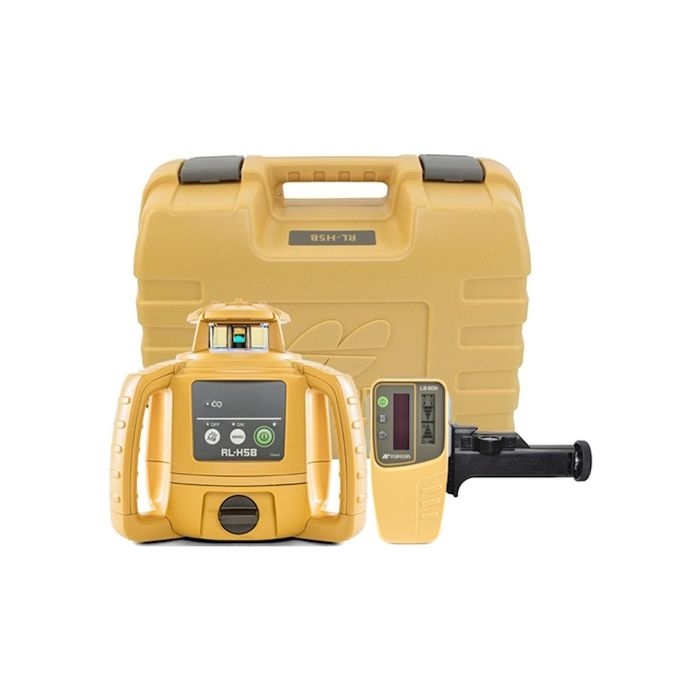

Topcon RL-H5B DB Horizontal Laser Level with LS-80X Receiver

Price: $1,070.00
Sale: $820.00


Availability: In-stock items ship same day if ordered before 3pm
Product Code: 1021200-73
Qty:

Description Specifications


The Topcon RL-H5B DB Horizontal Laser Level with LS-80X Receiver is a rugged, self-leveling rotary laser designed for construction, grading, excavation, concrete, and site preparation applications. Delivering high accuracy of ±1/8 in. at 100 ft. and a working diameter of up to 2,600 ft. with the included LS-80X receiver, the RL-H5B provides reliable performance for both indoor and outdoor leveling tasks. Its automatic self-leveling capability and long-range operation help improve productivity while reducing setup time on the jobsite.


Built to withstand demanding environments, the RL-H5B features an IP66-rated housing that resists dust, rain, and harsh weather conditions. The included LS-80X laser receiver extends working range and enhances grade detection with dual LCD displays and selectable precision modes. Combined with up to 100 hours of battery life and Topcon's proven reliability, this system is an excellent solution for contractors who need dependable leveling performance day after day.
Features
  • Self-Leveling Rotary Laser: Automatically levels within a ±5° range for fast setup and reliable accuracy.
  • Long-Range Performance: Provides a working diameter of up to 2,600 ft. when used with the included LS-80X receiver.
  • High Accuracy: Delivers ±1/8 in. accuracy at 100 ft. for precise leveling and grading applications.
  • 600 RPM Rotation Speed: Optimized for efficient outdoor laser detection and construction layout work.
  • LS-80X Long-Range Receiver Included: Enhances laser detection and extends working range in bright outdoor conditions.
  • Dual LCD Receiver Displays: Provides easy grade readings from either side of the receiver.
  • Rugged IP66 Protection: Resistant to dust, heavy rain, and demanding jobsite conditions.
  • Extended Battery Life: Operates up to 100 hrs. on alkaline batteries for reduced downtime.
  • Wide Temperature Range: Designed for operation in temperatures from -4°F to 122°F.
  • Visible Red Laser Beam: Uses a 635 nm visible laser diode for improved visibility.
  • 5-Year Manufacturer Warranty: Backed by Topcon's long-term warranty coverage.
